Характеристики

OE NO.: OEM

Size: 788*632*256MM

Type: Caravan trailer truck air conditioner

Warranty: 12 months, 36 Months

Car Model: RV

Cooling Capacity: 3800W/11932BTU

Heating Capacity: 3800W/11932BTU

Refrigerant: R410A

Compressor type: LG

Installation: Roof Top Mounted

Power Supply: 220~240V/50Hz/1Ph &110V, 60HZ

Input Power: 1450W

Application: Caravan, Motorhome, RV

Сертификация: ISO9001:2008, CE

Основная информация

Сертификация: ISO9001:2008, CE

Model Number: RV

Оплата и доставка Условия

Packaging Details: Standard Exporting Package. Wooden box filled with Polly foam

Supply Ability: 1000 Unit/Units per Month Caravan trailer truck air conditioner

Характер продукции

Products Description

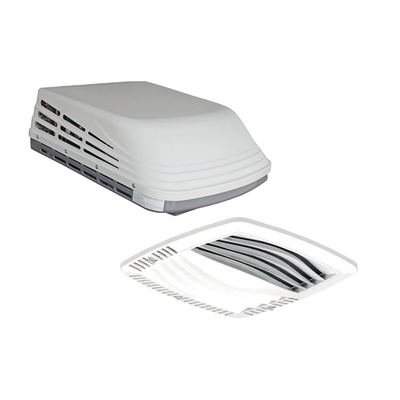

Roof Top 220V 3800W Caravan Air Conditioner for Sale Electric RV Air Conditioner

Brief Introduction of TKT Caravan air conditioners

TKT, as the leading manufacture of bus air conditioner in the world, began the research, design and production of caravan air conditioner from 2001 due to higher comfort requirement of caravan. From the beginning, TKT designed ranges of Caravan air conditioners, which are all capable of being installed in Caravans, RV, Motor homes, Campers and Yachts for global market. Considering the different demands of customers for RV air conditioners, So the whole series of TKT Caravan air conditioners are available in two types of installation, one is a concealed installation, capable of being installed under a bench, sofa, bed or cabinet, etc., and the other is Roof Top mounted. This series is specially designed for Caravans, RV, Motor homes, Campers and Yachts, and uses high quality imported compressors, Including RECHI (Taiwan), LG and Mitsubishi. Both the compressor and the control system are powered by electricity or batteries. Tips: The voltage required by the customer can be customized (for example, AC220/50Hz is standard, and AC110V/60HZ or AC220V/ 60HZ can be customized).

Structure of TKT Caravan air conditioners

Condenser assembly, Evaporator assembly, Compressor assembly. Refrigerant R410A. Other major components, such as Heat pump (TKT-30UB), ACRG distribution box, Electric heater, Remote control, Wired-control wall-pad, Expansion valve, Oil separator, Interior panel, Removable and Washable filter, Condenser fan, and Evaporator Blower

Advantage of TKT Caravan air conditioners

Multiple options for installation to provide you with the ideal RV air conditioning. TKT-30UB is Concealed design, retaining the facade of the caravan as well as the internal structure; TKT-40SD&40THIN is Roof Top mounted. Low noise& vibration. One-piece EPP frame is used, and outdoor air circulation through the floor or the wall, so no noise problem troubling passengers via the floor. Mini size, Lightweight, Easy to install and maintain，

With Removable and washable filter to keep interior clean; With Environment-friendly & non-zone depleting refrigerant R410A. Really powerful cooling comfort, Higher efficiency and more stable working.Such as TKT-40SD & 40THIN use ACRG distribution box with fully adjustable louvers and blower speeds provide just right cooling comfort, and Axial fan produces big air volume to cool down the condense;TKT-30UB capable of Air distributed equably & flexibly all over the room via 3 vents & soft pipes, more comfortable. Outstanding RV air conditioning design.Designed according to European & Australian RV trend, with the manufacture experiences of Under-bench A/C over 10 years, particularly fitting the middle-large self-propelled RV and caravans; Humanized design, such as TKT-40THIN, the outer machine design is thinner, suitable for cities with limited height, Besides, Sleek shroud design reduces drag. Safe Voltage Level More secure system, Higher protection degree. Certificated by Various High Standard in US and Europe; CE, RHS ect Certificated

Main Features of TKT Caravan air conditioners

Variety of installation options Low noise and vibration, bringing a comfortable atmosphere for drivers and passengers Easy installation & maintenance Environment-friendly Stylish design CE, RHS Certification;

TKT-30UB TKT-40THIN TKT-40SD

Parameter

Series	TKT-30UB	TKT-40THIN	TKT-40SD
Cooling Capacity	2500W(8525BTU)	3800W(12960BTU)	4000W(13640BTU)
Heating Capacity	2500W(8525BTU)	1500W(5115BTU)	2000W(6820BTU)
Structure	Under-bed	Roof Top
Refrigerant	R410A
Compressor	Rechi (Taiwan)	LG	Mitsubishi
Input Power	750W (+500W electric heater)	1450W	1450W
Current	3.9A (+2.3A electric heater)	5.8A (220V)	5.8A (220V)
Power Supply	220～240V/50Hz/60HZ 1Ph&110V, 60HZ	220～240V/50Hz/1Ph &110V, 60HZ	220～240V/50Hz/1Ph,110V, 60HZ
Upper Unit Sizes(LWH)	734398296 mm	788632256 mm	890760335 mm
Net Weight	27.8KG	28 KG	39KG
Application	RV, Caravan, Motor Home, Camper, Yacht

Product packaging

Standard Packing: carton box + Wooden Pallet,
Support customized packing like wooden box, etc

Company Profile

Brief Introduction of TKT

TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world. In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America,South America and Africa, earning high reputation and sustainable growth in all markets. All of TKT products, including truck refrigeration and bus air conditioner, are CE certificated for the whole performance, and our company has been certificated by ISO9001:2008. The most important is that the reliable performance of our products have been proved by customers from more than 70 countries, especially very hot countries, such as Mexico, Colombia, Qatar and Saudi Arabia, etc. TKT will continuously concentrate our efforts on high quality products, the best service and technical innovation for cold chain system of the world. No matter
where you are, TKT will be your strong back-up and reliable partners in China forever.

Certifications

Exhibition&Customer Visiting

FAQ

1. Why Choose us?

A. Reliable quality and competitive Price

B: Professional and well trained sales, and 24 Hours Technical support

C: Flexible payment terms

D: 12 months warranty protection.

2. What is your Warranty Policy?

Firstly, we provide 12 months warranty from the date of delivery. Free spare parts will be provided if the parts defective for quality reason during the warranty period. But videos and fault description will be need for engineer double check first! Damage or defective caused by improper use not covered by warranty.

3. What is your payment terms?

A: Paying online via Alibaba Trade Assurance order system, or T/T wired transfer.

4. Are these products in stock? How long is the lead time?

Normally, the lead time is around 1 weeks for small order, for large quantity order please check with sales directly
